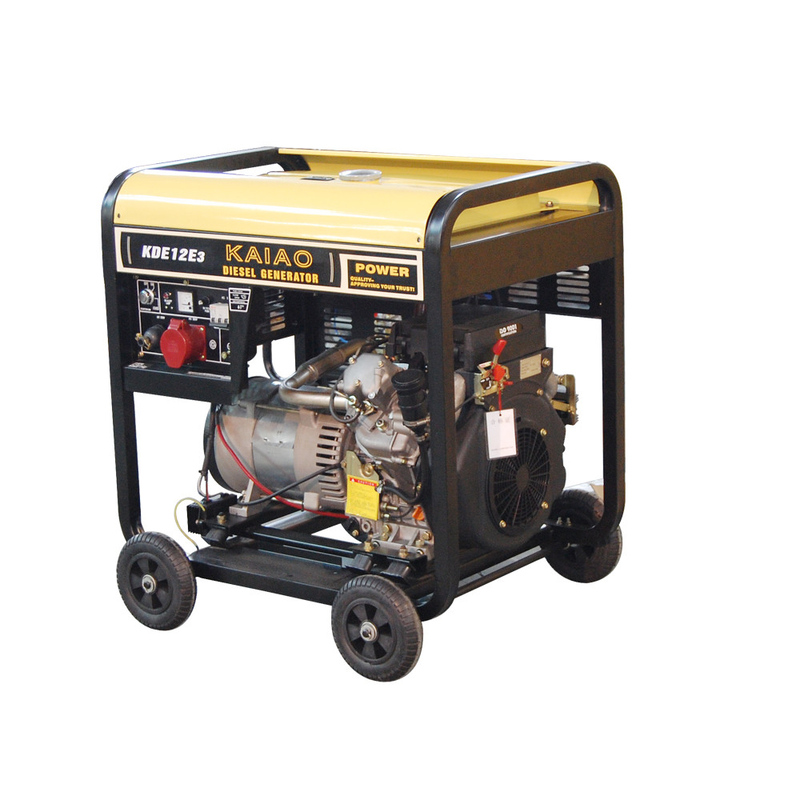

Open Frame 2 Cylinder Diesel Generator 10kva 3600rpm CE ISO Certification
تفاصيل المنتج:
| Place of Origin: | China |
| اسم العلامة التجارية: | KAIAO |
| إصدار الشهادات: | CE/ISO/SGS |
| Model Number: | KDE12E3 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| الأسعار: | negotiable |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 25 working days after received down-payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 1,000 pcs per month |
|
معلومات تفصيلية |
|||
| مصنفة / ماكس. الطاقة (KW): | 10.5/11.5 | رقم المرحلة: | المرحلة 3 |
|---|---|---|---|
| تردد التيار المتردد (هرتز): | 60 | الجهد الخارجي للتيار المتردد (V): | 416/240 |
| التصنيف الحالي (A): | 14.6 | خرج التيار المستمر (فولت/أمبير): | 400/230 416/240 |
| نموذج المحرك: | KA840 | النوع: | اسطوانتين، تبريد بالهواء، 4 أشواط عمودية، حقن مباشر |
| بدء تشغيل النظام: | الكهربائية | سعة خزان الوقود (لتر): | 25 |
| الوزن الصافي (كلغ): | 185 | البعد ((L*W*H): | 930×620×690 |
| إبراز: | Open Type Diesel Generator,Single Cylinder Diesel Generator,Single Cylinder Diesel Generator |
||
منتوج وصف
Open Frame 2 Cylinder Diesel Generator 10kva 3600rpm CE ISO Certification
Powerful
All generators are equipped with KAIAO air-cooled Diesel engines;
Control Panel
All control units are set on one panel and Digital control panel is optional which will display the running data including output voltage, current, running hours etc.
Low oil alarm system
Before the fuel level drops to the limited level, the generator will stop automatically and it can be restarted only if the fuel is refilled.
Application of AVR
The AVR (Automatic Voltage Regulator) can ensure the output to be smooth and provide reasonable protection against the overload of the generator to avoid damage the set.
Advanced Alternator
100% copper wire, waveform distortion is kept at a Min. level and the output is stable.
ATS System
The ATS system (Automatic Transfer Switch) will give commands to start the genset automatically if the Mains Power fails or the voltage & frequency of the mains power become abnormal. As the mains power is restored, ATS shifts the load back to the mains power and shuts down the genset.
Competitive Advantage:
Advanced R&D team, Years of Design & Production of engines, Complete quality control system & after-sale services to ensure high level quality & performance price ratio gensets, easy to maintenance.
